Filter media selection is an essential factor in industrial filtration, affecting filtration efficiency, cycle time, and operational costs. With nearly a century of expertise, Sparkler Filters® high-performance filter media have been precision engineered and selected for optimal performance in industries including chemical processing , pharmaceuticals, food & beverage and mining.
Optimize throughput
Reduce downtime
Improve cake release characteristics
Lower operational costs- maintenance and consumables
This guide explores key considerations, best practices, media types and troubleshooting to help you select the best filter media for your application, to visit our Filter Media Product page click here.
Key Factors in Filter Media Selection
Filter Media Types & Industry Standards
How to Select the Right Media for Your Filter Type
Critical Considerations for Filtration Performance
Surface vs. Depth Filtration
The Filter Cake is Doing the Work
Don't Overthink the Media: Focus on Process First
Pressure Drop Monitoring: A Diagnostic Tool
Case Study : OEM Filter Bags vs. Leading Generic Brand
Regulatory Compliance & Storage Considerations
Absolute Rating : Captures 100% of particles at the specified micron size.
Nominal Rating : Captures most (typically 90-95%) of particles at the specified size.

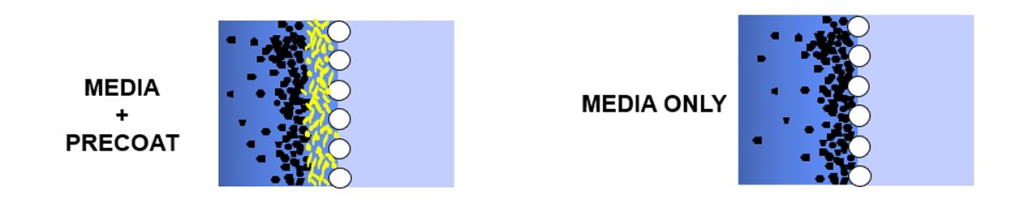

Precoating improves release characteristics across all filter media types.
Protects the media from damage and clogging, extending cycle time.
Fine filtration below -30 microns often requires a precoat when using wire mesh.
Membrane filter media or filter aid is required for clarity under 1.5 microns.
Disposable Media (e.g., cellulose, polypropylene felt, cartridge filters) regains 100% available filter area with each use.
Reusable Media (e.g., wire mesh, filter bags, candles) loses functional filter area over time, making change out maintenance and differential pressure monitoring critical. All automated systems utilize this type of media.
Advantages :
Most common filter media for horizontal plate filters & Nutsche filters.
Common Applications :
Advantages :
Common Applications :
Advantages :
Common Applications :
Advantages :
Common Applications :
Advantages :
Common Applications :
Very high cost compared to other options.
Filter Type
Best Filter Media
Horizontal Plate Filters (HPF)
Cellulose, Polypropylene, PTFE Membrane
Vertical Plate Filters (MCRO, VF)
Polypropylene, Wire Mesh, Polyethylene
Nutsche Filters
Polypropylene Bags, Cellulose, Membrane
Proper Filter Media Installation
Understanding Media Resistance
Surface Filtration : Solids are trapped on the surface of the media. This is common with membrane filters or tight woven materials.
Depth Filtration : Solids are captured within the thickness (depth) of the media or cake layer. This allows for higher surface area efficiency and longer run times.

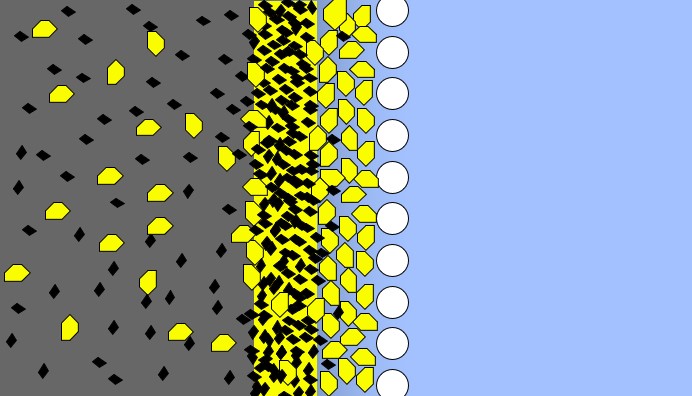

In most industrial solid-liquid separation, especially using pressure filters, the filter cake—not the media—is doing most of the filtration. That’s a key distinction many users overlook.
The functional open area extends to over 90%, enabling excellent distribution and uniformity of flow pathways.
The media's role becomes a support platform—its job is simply to hold the filter aid, which becomes the actual filtration layer.
In Short : the filter media catches the precoat, but the precoat (and later the cake) does the filtering.
In certain cases, you can also recirculate your product and form a self-generated depth filter using your own solids—eventually achieving clarity spec in applications that cannot utilize a precoat.
Establish a baseline and standard operating procedures for optimal efficiency in process parameters. Repeat. Click here for an example batch log.
Follow recommended precoat and body feed procedures if needed Click here to download the Sparkler Precoat and Bodyfeed Guideline PDF.
The cake has a Iow darcy value, restricting flow and contributing to resistance. Bodyfeed can be considered to offset this resistance
Solids are being forced into the filter media or compressed , blinding the surface area
Check out this page on process tips for more information
A new installed media might have no measurable drop or a dP of <2 PSI
Over time , dP slowly climbs . If you start a cycle at IO psid, you're running reduced flow or getting faster blinding— time to replace the bags.
Establish a baseline dP — typically -3 psid.
In one caustic application, a customer was unknowingly operating at 60% efficiency for 8 years—24/7/365. Why?
They used generic polypropylene bags from the world’s largest filter bag producer—mass-manufactured, one-size-fits-all. When we inspected the system, we found that:
Bottom line? Sparkler OEM bags are cheaper in the long run
Sparkler’s filter media is built to comply with stringent regulatory standards, including:
FDA 21 CFR 211.72 – For pharmaceutical and food applications
TSE No Animal Derived Raw Materials
Certificate of Conformance (COC), Lot Tracking, SDS availability
Pharmaceutical API safety protocols
Food safety protocols (Non-GMO, allergen-free, proper storage)
Click here to visit our page on compliance and standards
Other than specific chemical compatibility issues, most of our filter media options are suitable for highly regulated industries including food and controlled substances.
Storage Guidelines :
Nearly all filter media can be stored indefinitely if :
Kept in sealed boxes or bags
Stored in climate-controlled rooms (low humidity, consistent temperature)
Protected from sunlight, moisture, pests and dust
Sparkler Filters’ engineering team has helped thousands of industries refine their filtration processes.
